FujikuraRISELINK-100S+

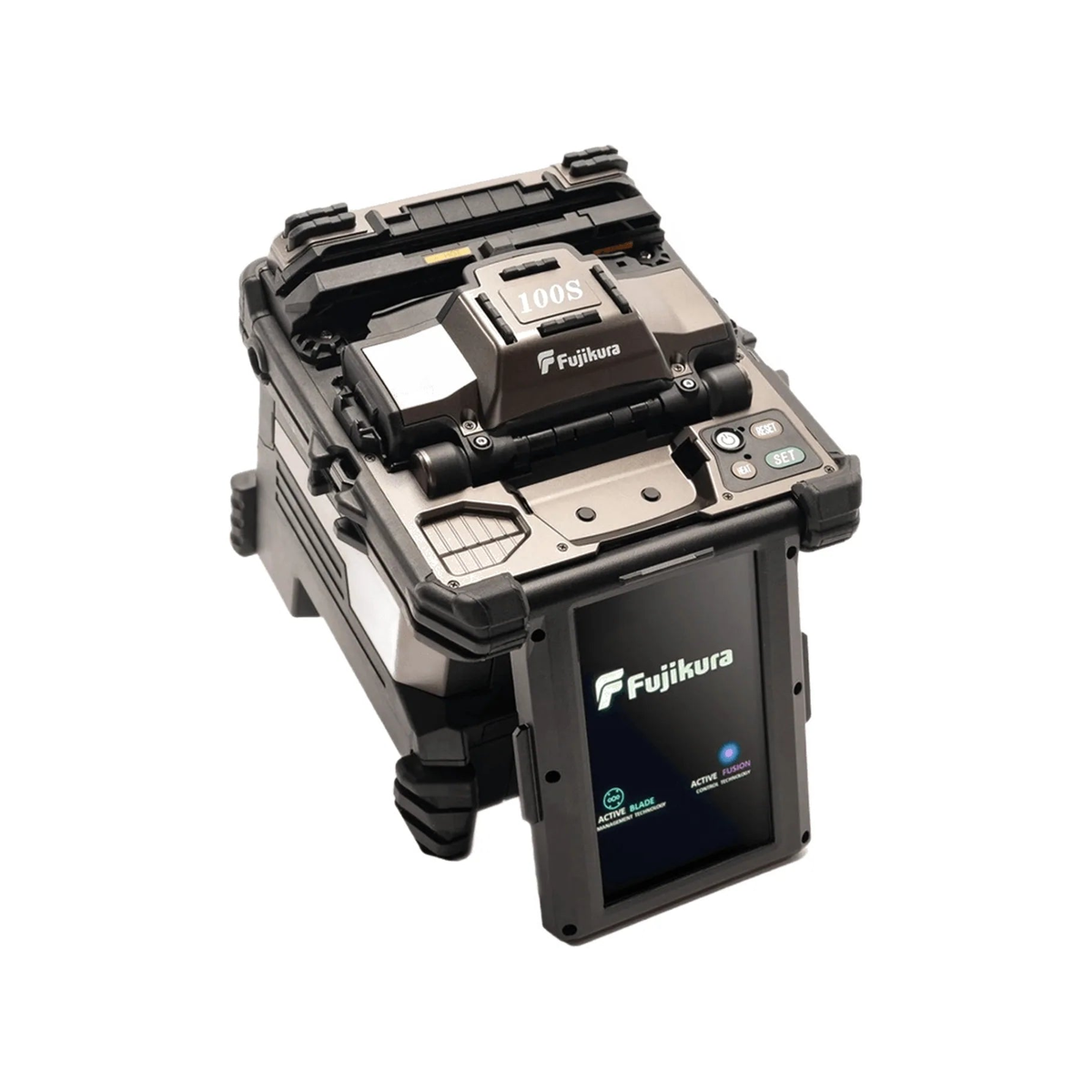

Fujikura 100S Fusion Splicer for FTTH & Access Networks
AlignmentActive core alignment; single-fiber splicing
Fiber compatibilitySingle-mode and multimode optical fiber
- Alignment
- Active core alignment; single-fiber splicing
- Fiber compatibility
- Single-mode and multimode optical fiber
- Average splice time
- SM FAST: 7-9 s; SM AUTO: 11-13 s; AUTO: 14-16 s
- Average heating time
- 60 mm SLIM mode: 8-10 s; 60 mm mode: 13-15 s
- Average splice loss
- ITU-T G.652 and G.657: 0.02 dB; G.651: 0.01 dB; G.653, G.654 and G.655: 0.04 dB
- Battery endurance
- Approximately 300 splice-and-heat cycles under the manufacturer test conditions
- Measurement conditions
- Times are measured at room temperature; heating uses the AC adapter. Loss is measured by cut-back after joining the same fiber type. Results vary with environment, fiber and sleeve; heating also depends on battery condition. Battery testing uses a new battery, power-saving settings and one splice-and-heat cycle per minute at room temperature.
