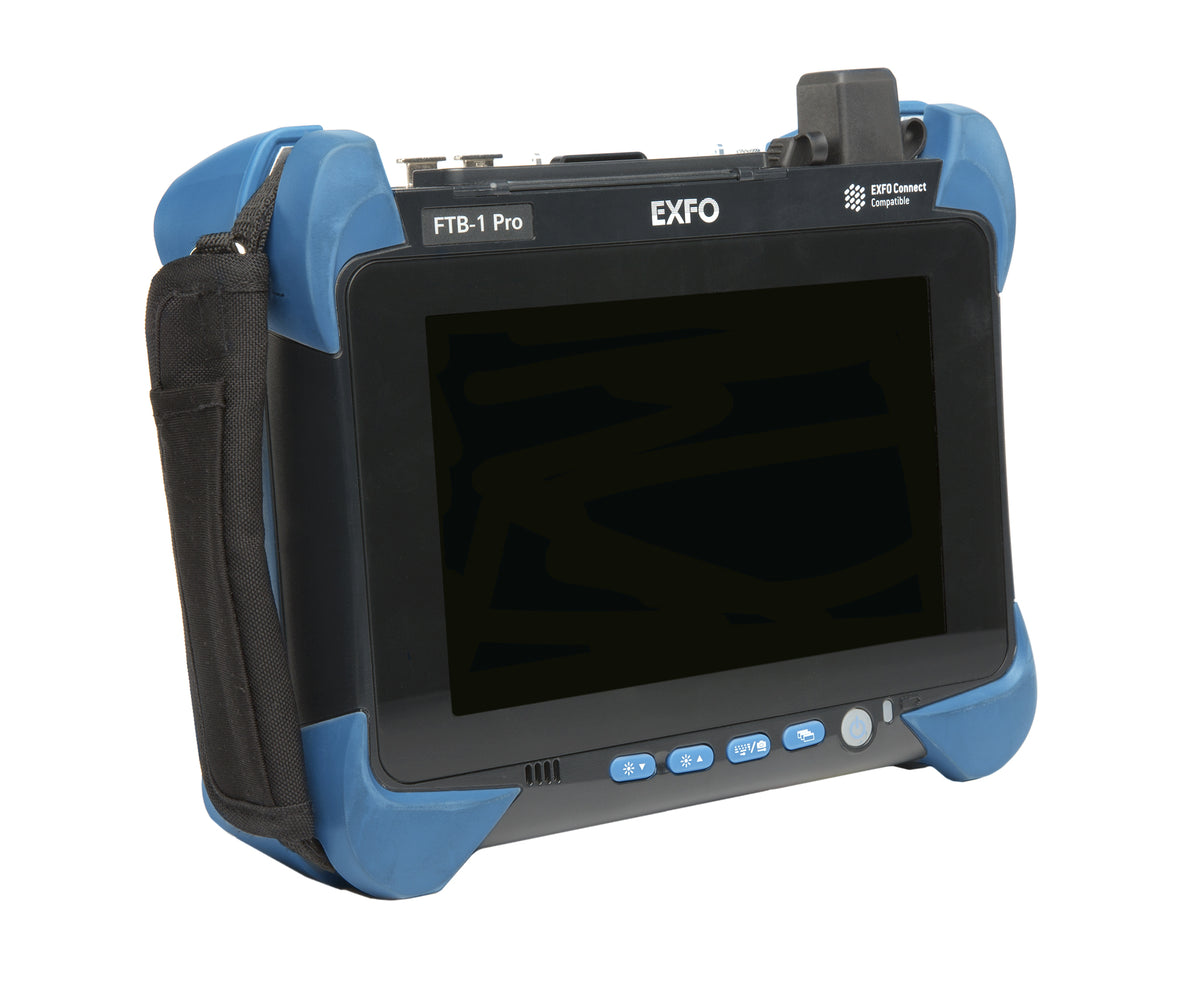

EXFO FTB-1v2 Pro Modular Platform for Fiber, Ethernet & Transport Testing

Platform

EXFO FTB-1v2 Pro modular test platform; also known as FTB-1 Pro

Carrier configurations

Single carrier (SC), dual carrier (DC) or high-power dual carrier (HPDC); specify the configuration when requesting a quotation

Module capacity

SC: one single-slot FTBx module. DC/HPDC: two single-slot FTBx modules or one dual-slot FTBx module; compatibility depends on the selected carrier

Processor and memory

Quad-core processor with 8 GB RAM, per the current manufacturer specification

Operating system

Windows 10 IoT Enterprise LTSC 2021

Display

8-inch (203 mm), 1280 × 800 TFT color touchscreen; standard or enhanced outdoor display option

Storage

128 GB internal flash memory

Interfaces

RJ45 10/100/1000 Mbit/s Ethernet; two USB 2.0 ports; one USB 3.0 port; microSD slot; 3.5 mm headset/microphone jack

Wireless connectivity

Wi-Fi and Bluetooth RF configuration; mobile connectivity requires a supported external USB dongle

Compatible OTDR modules

FTBx-720C/D, FTBx-730C/D, FTBx-735C/D, FTBx-740C and FTBx-750C/D; test modules and required software licenses are separately configured

Measurement specifications

OTDR wavelength, dynamic range and measurement functions depend on the installed test module, not on the platform alone

Power

Rechargeable lithium-ion smart battery; high-power dual-carrier configuration uses two batteries. AC/DC adapter depends on carrier configuration

Dimensions (H × W × D)

SC: 210 × 254 × 66 mm; DC: 210 × 254 × 96 mm; HPDC: 210 × 254 × 122 mm

Operating environment

0 °C to 50 °C; 0% to 95% relative humidity, non-condensing

Optional functions

Platform power meter and visual fault locator are order options, not standard included functions

This product is available by quote. Contact us for current pricing.
