Description

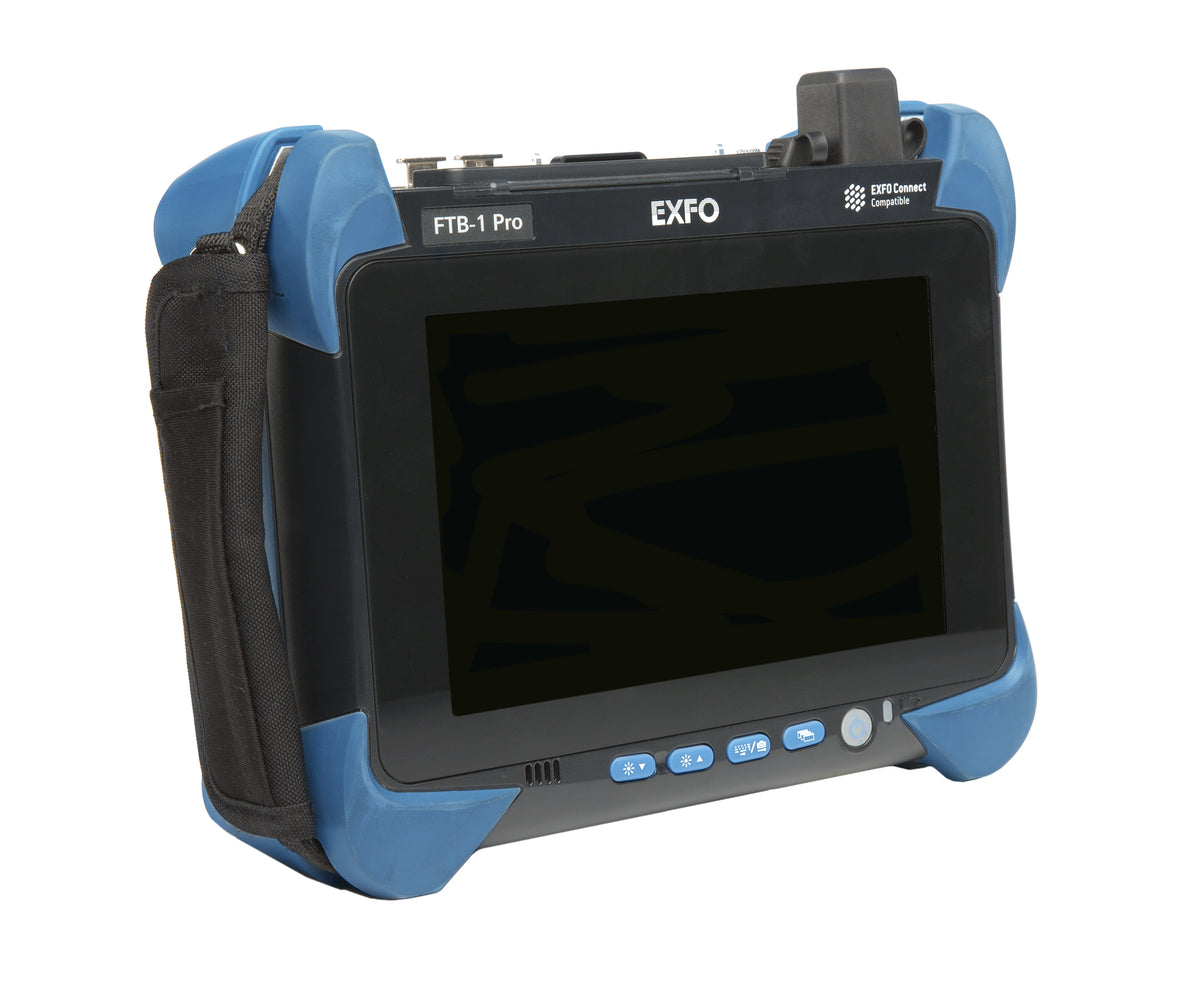

The EXFO FTB-1v2 Pro, also known as FTB-1 Pro, is a portable modular test platform available with a single carrier, dual carrier or high-power dual carrier. The current manufacturer specification includes a quad-core processor, 8 GB RAM, 128 GB flash storage and an 8-inch 1280 × 800 touchscreen running Windows 10 IoT Enterprise LTSC 2021.
Configure the platform with a compatible FTBx OTDR module for fiber characterization, or with other supported modules for optical, Ethernet and transport testing. OTDR wavelengths, dynamic range and measurement capabilities are determined by the selected test module and software, not by the platform alone.
Configuration and supply scope: This listing is for a configurable platform, not a complete OTDR module bundle. Confirm the carrier, test-module part number, software licenses, connectors and accessories in the quotation. Product photos show representative configured units; visible test modules, power meter/VFL options and other accessories are not included unless expressly listed in the quotation.
Contact sales for a configuration-specific quotation and current availability.
Specifications
- Platform EXFO FTB-1v2 Pro modular test platform; also known as FTB-1 Pro
- Carrier configurations Single carrier (SC), dual carrier (DC) or high-power dual carrier (HPDC); specify the configuration when requesting a quotation
- Module capacity SC: one single-slot FTBx module. DC/HPDC: two single-slot FTBx modules or one dual-slot FTBx module; compatibility depends on the selected carrier
- Processor and memory Quad-core processor with 8 GB RAM, per the current manufacturer specification
- Operating system Windows 10 IoT Enterprise LTSC 2021
- Display 8-inch (203 mm), 1280 × 800 TFT color touchscreen; standard or enhanced outdoor display option
- Storage 128 GB internal flash memory

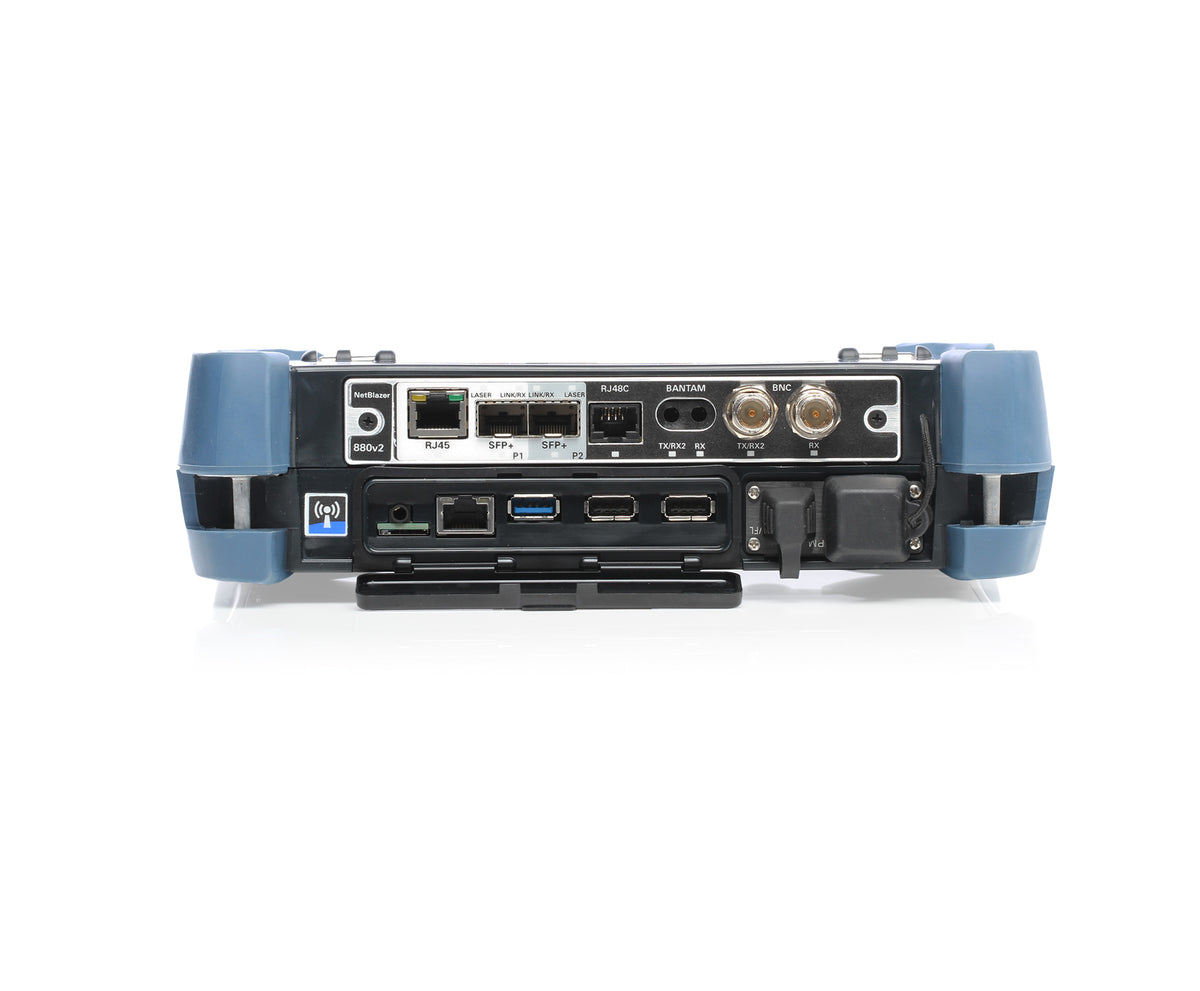

- Interfaces RJ45 10/100/1000 Mbit/s Ethernet; two USB 2.0 ports; one USB 3.0 port; microSD slot; 3.5 mm headset/microphone jack
- Wireless connectivity Wi-Fi and Bluetooth RF configuration; mobile connectivity requires a supported external USB dongle
- Compatible OTDR modules FTBx-720C/D, FTBx-730C/D, FTBx-735C/D, FTBx-740C and FTBx-750C/D; test modules and required software licenses are separately configured
- Measurement specifications OTDR wavelength, dynamic range and measurement functions depend on the installed test module, not on the platform alone
- Power Rechargeable lithium-ion smart battery; high-power dual-carrier configuration uses two batteries. AC/DC adapter depends on carrier configuration
- Dimensions (H × W × D) SC: 210 × 254 × 66 mm; DC: 210 × 254 × 96 mm; HPDC: 210 × 254 × 122 mm
- Operating environment 0 °C to 50 °C; 0% to 95% relative humidity, non-condensing
- Optional functions Platform power meter and visual fault locator are order options, not standard included functions
