Description

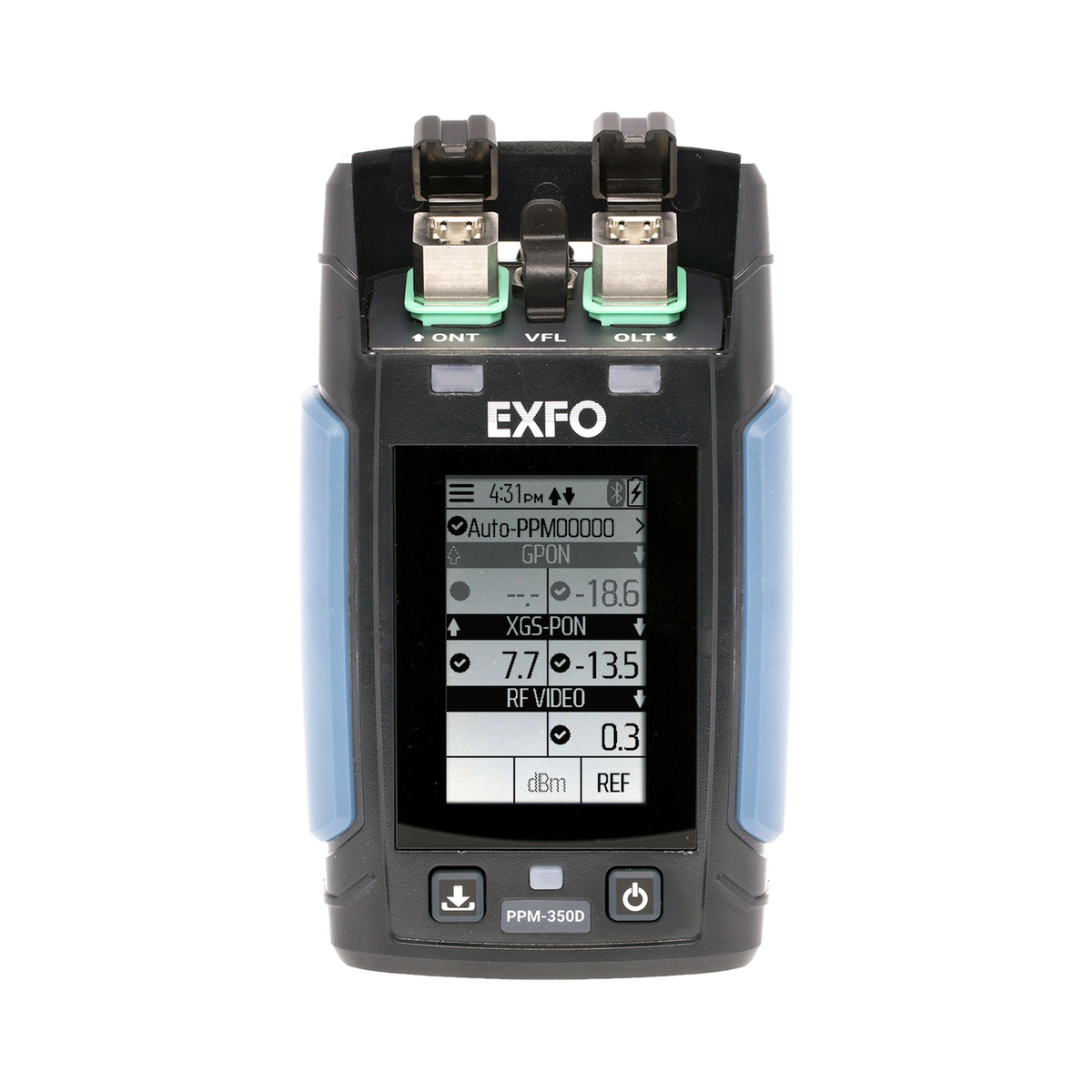

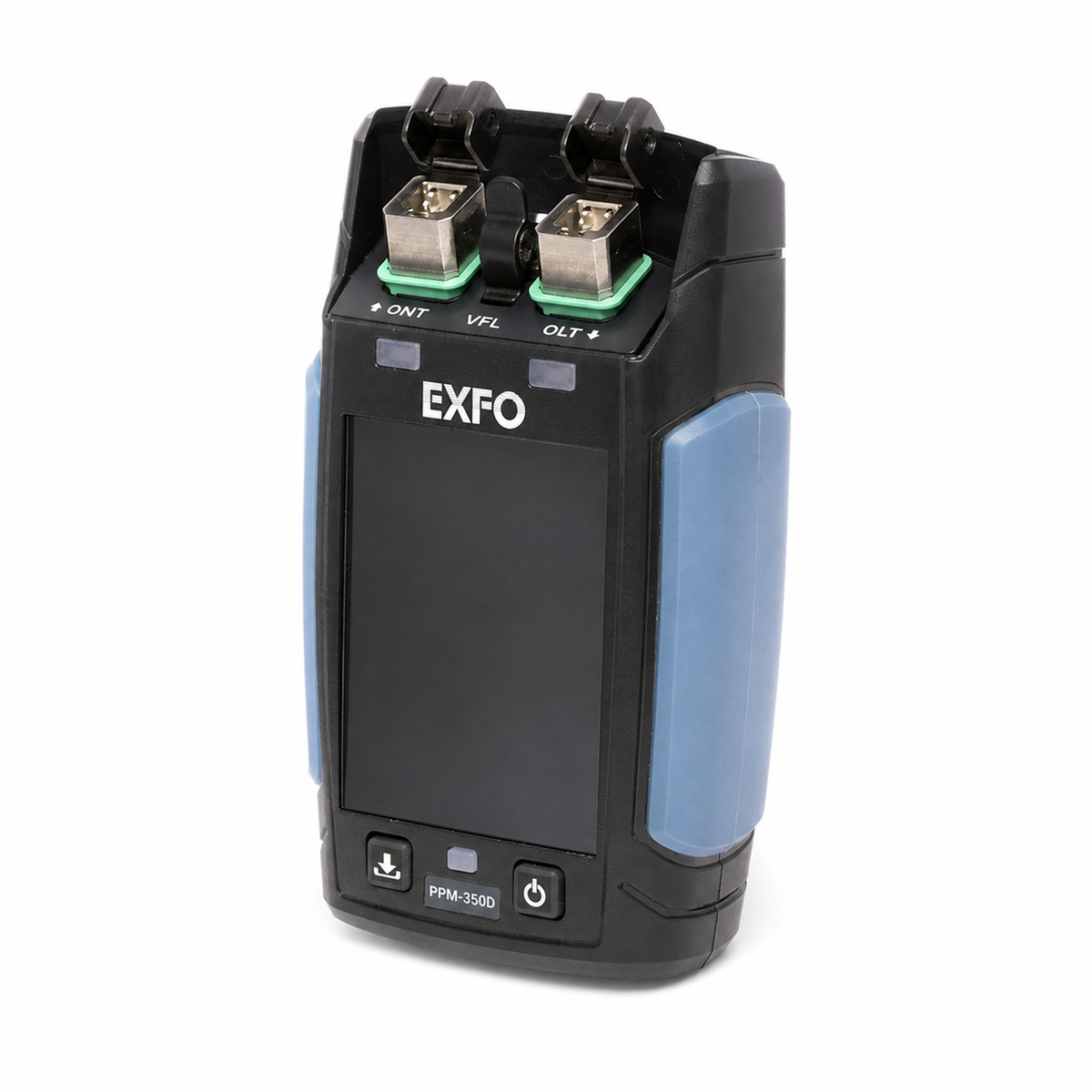

The EXFO PPM-350D is a PON-aware handheld optical power meter for service activation and testing across legacy and next-generation passive optical networks.
- Automatically detects and adapts to supported PON technologies, including GPON, EPON, XG-PON, XGS-PON, NG-PON2 and 10G-EPON.
- Supports pass-through testing for ONT/ONU verification.
- Bluetooth and USB connectivity support configuration, job execution and reporting workflows.
Exact measurement configuration, optional features, calibration status, included accessories, condition and availability must be confirmed before quotation.
Specifications
- Model EXFO PPM-350D
- Product type Handheld PON power meter
- Supported technologies GPON, EPON, XG-PON, XGS-PON, NG-PON2 and 10G-EPON
- PON-aware function Automatically detects the PON technology in use and adapts test parameters
- Test modes Optical power, loss and pass-through ONT/ONU verification
- Fiber type Singlemode

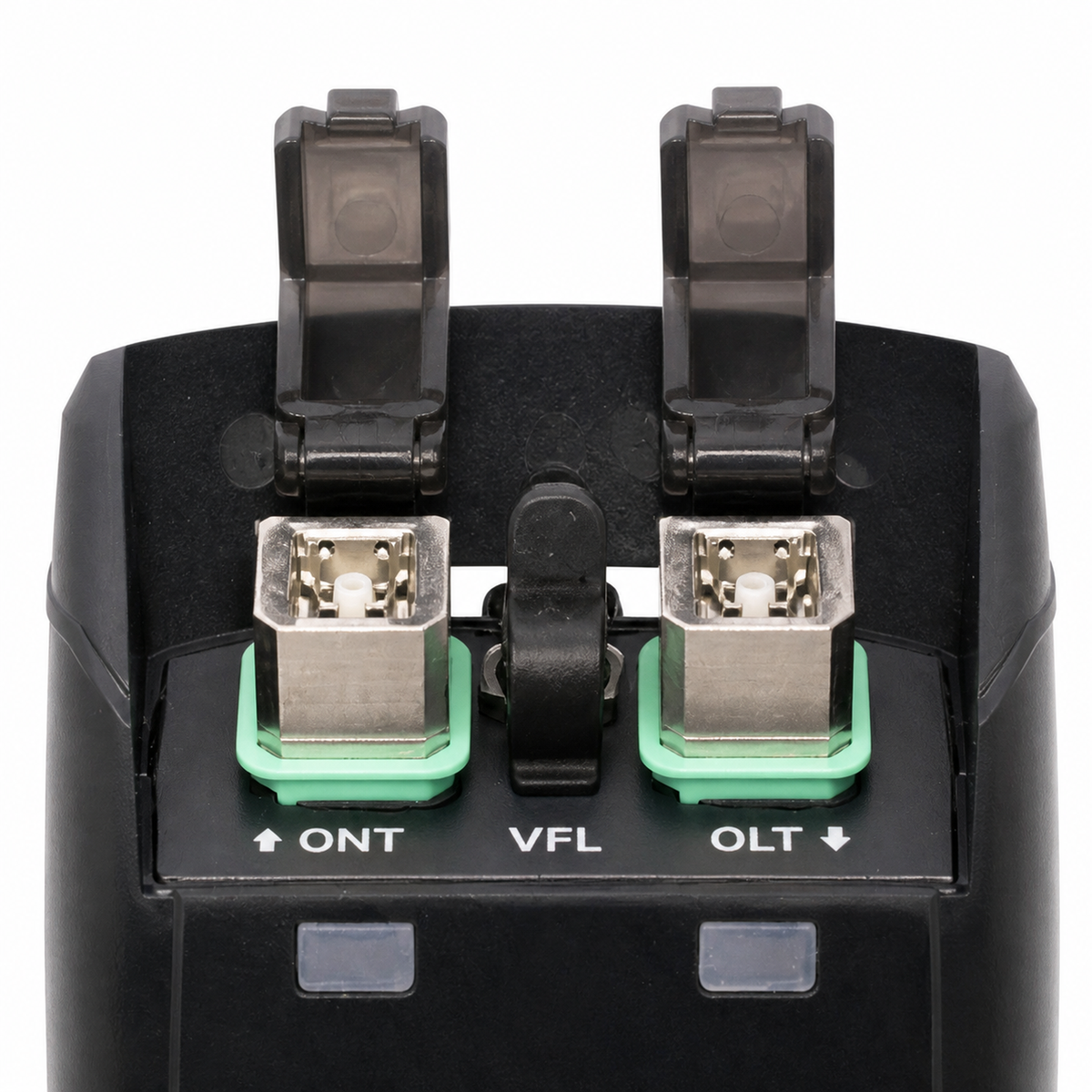

- Fiber connector SC/APC
- Connectivity Bluetooth and USB
- Auto-wavelength switching Yes
- Reporting Compatible mobile application workflow for storing results and creating reports
Applications
Equipment verification
Final configuration and documentation are confirmed in the written quotation.
- Equipment condition
- Brand New
- Calibration status
- To be confirmed in quote
- Included accessories
- To be confirmed in quote
- Lead time / availability
- Standard quotation dispatch
View all verification fields
- Serial / asset ID
- Not yet published
- Manufacture year
- Not yet published
- Firmware
- Not yet published
- Warranty
- 12-month manufacturer equipment warranty
Documents & evidence
- Published documents Not published for this product yet
- Calibration report To be confirmed in quote
- Photo / serial evidence To be confirmed in quote
Service pathways
Shipping information
Riselink Technology Limited ships from Shenzhen. Freight method, lead time and any import duties are confirmed with your order or written quotation.
Warranty
12-month manufacturer equipment warranty Confirm the terms that apply to your configuration in the written quotation.
