Riselink 2000 m G.652D Single-Mode OTDR Launch Cable Box — Selectable Connector Ends
What ships with this unit
The included items are listed under “In the box” for the selected version.
Talk to our team
Description

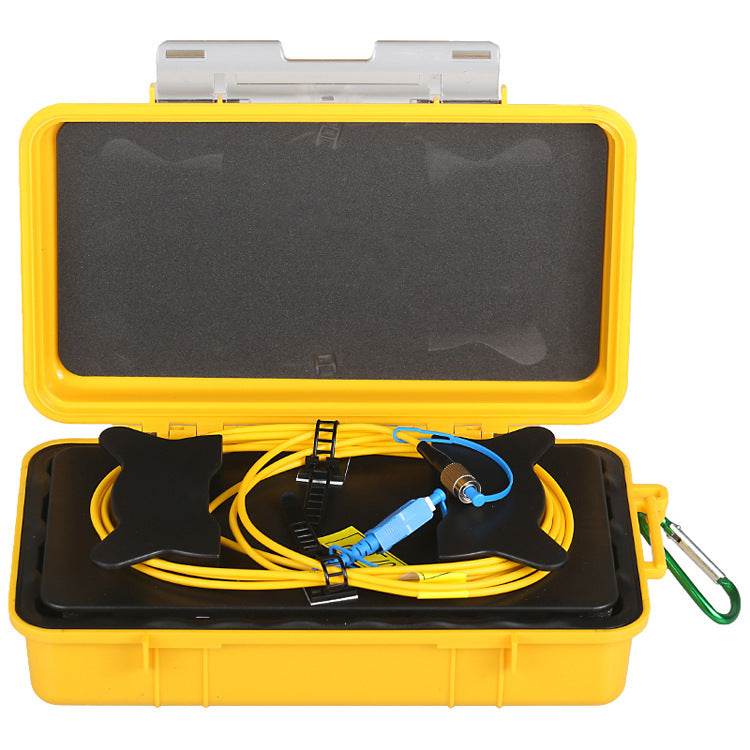

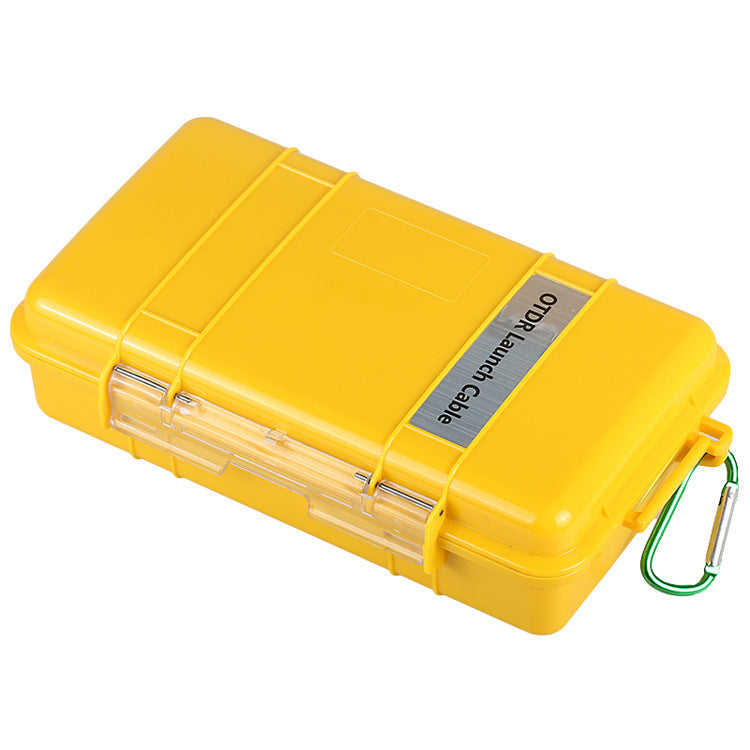

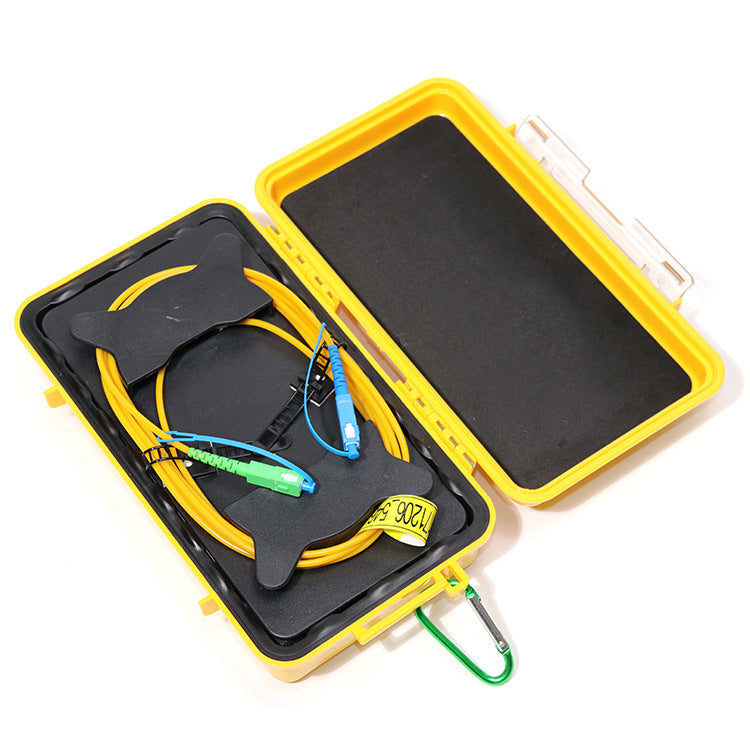

A 2000 m single-mode launch-fiber assembly in a yellow protective case bearing Riselink branding. Use it between a compatible OTDR and the fiber link under test to provide a lead-in section for evaluating the first link connection. Select the connector for each end when ordering.
Versions and configuration

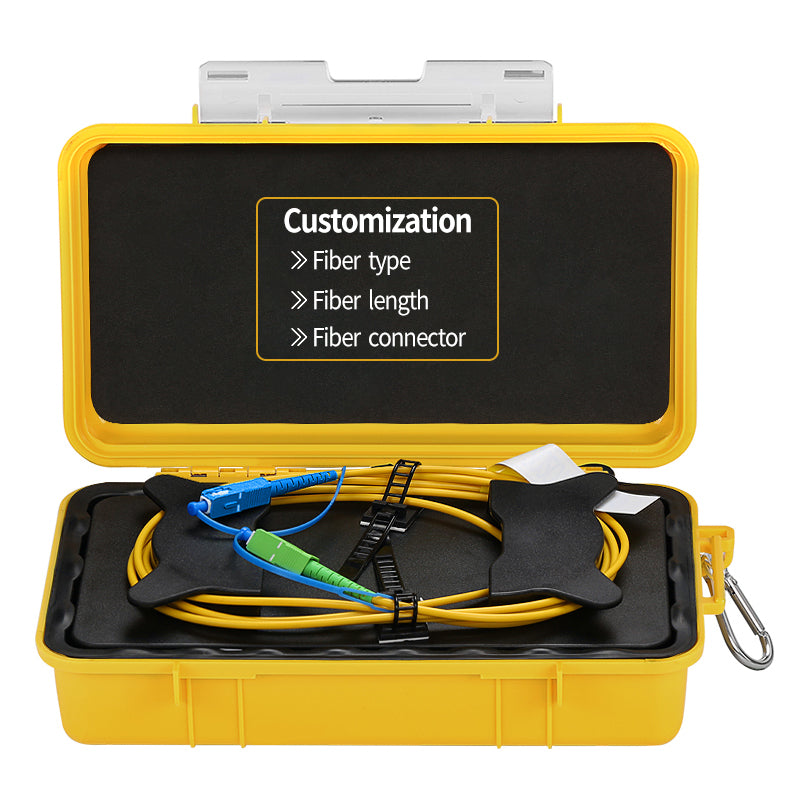

All 64 listed Connector A / Connector B combinations are available to order, including ST/APC options. Your cable will be supplied with the connector pair selected when ordering. Choose Connector A for the OTDR end and Connector B for the link end. One ordered configuration contains one cable with the two selected ends; the selector does not represent a kit of interchangeable connectors. Match connector type and polish at each mating interface. A cable may have UPC at one end and APC at the other, but a UPC end face must never be connected directly to an APC end face.
Specifications
Fiber: G.652D single-mode. Fiber length: 2000 m. Connector A: the selected OTDR-end connector. Connector B: the selected link-end connector. Housing: yellow protective case with Riselink branding. Supply unit: one launch-cable assembly. Use the selected variant name and SKU to identify the ordered connector pair.
In the box
One 2000 m OTDR launch-cable box, fitted with the Connector A and Connector B selected when ordering. Cable-box assembly only; no additional accessories or documents are included. An OTDR and any separate inspection, cleaning or connection equipment required for testing must be supplied by the user.
Suitability and use limitations
For compatible single-mode OTDR testing and troubleshooting. The assembly can also serve as a receive cable when its connectors and length meet the test procedure. Before choosing 2000 m, check the OTDR dead-zone requirements at the pulse width you will use; this length is not suitable for every test. Inspect and clean both interfaces before connection. Include the launch fiber and link in the measurement range and configure launch/receive compensation according to the instrument instructions. Do not use it as a multimode launch cable, connect mismatched APC/UPC end faces, or treat the cable alone as a link-certification instrument.
Shipping
Free shipping to the United States and Canada. Ships from Shenzhen, China. All 64 connector configurations are handed to the carrier within 3 business days after payment. Orders ship via DHL, FedEx, BEST (百世), or Yanwen.
Specifications
- Fiber G.652D single-mode.
- Fiber length 2000 m.
- Connector A the selected OTDR-end connector.
- Connector B the selected link-end connector.
- Housing yellow protective case with Riselink branding.
- Supply unit one launch-cable assembly.
- Specification Use the selected variant name and SKU to identify the ordered connector pair.
