Description

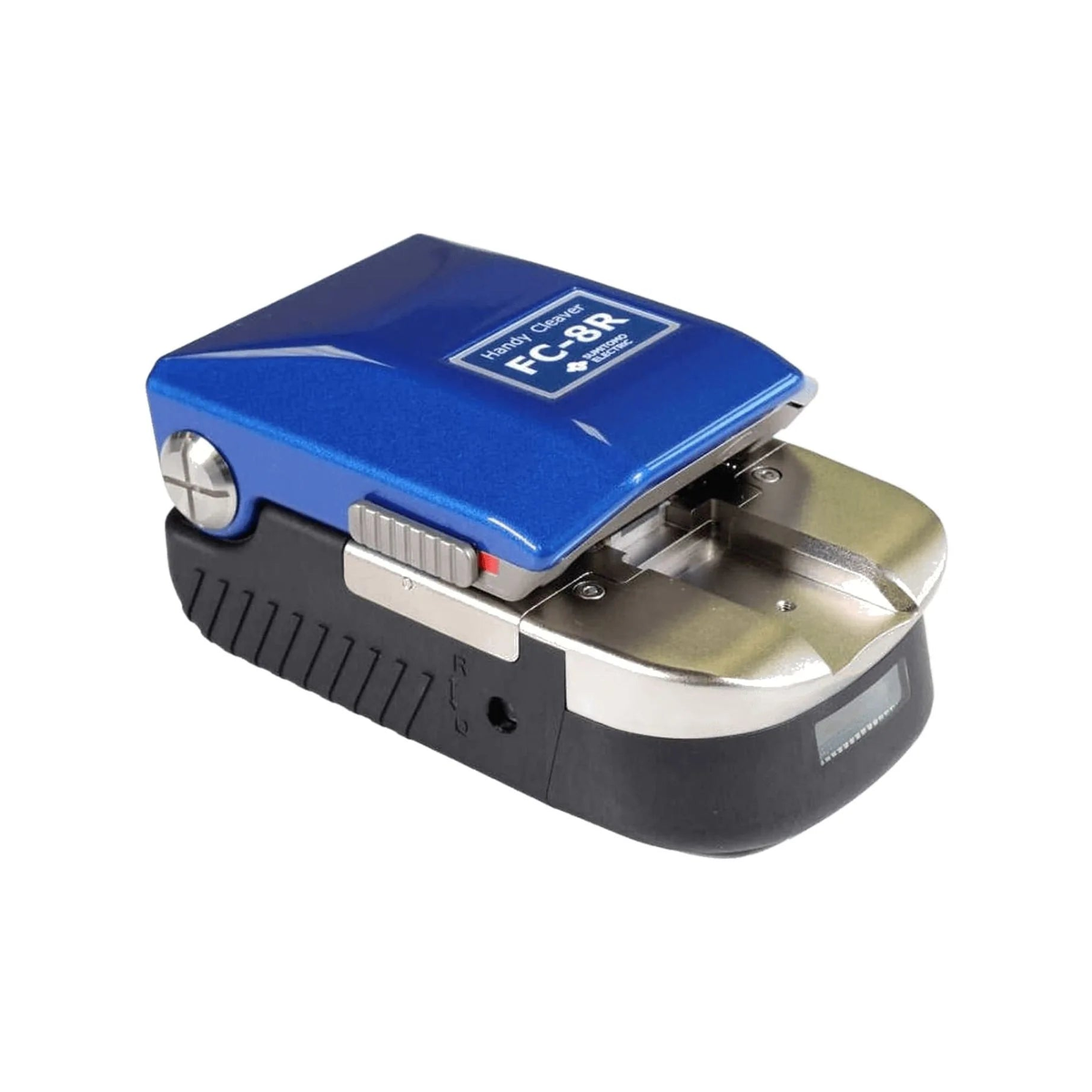

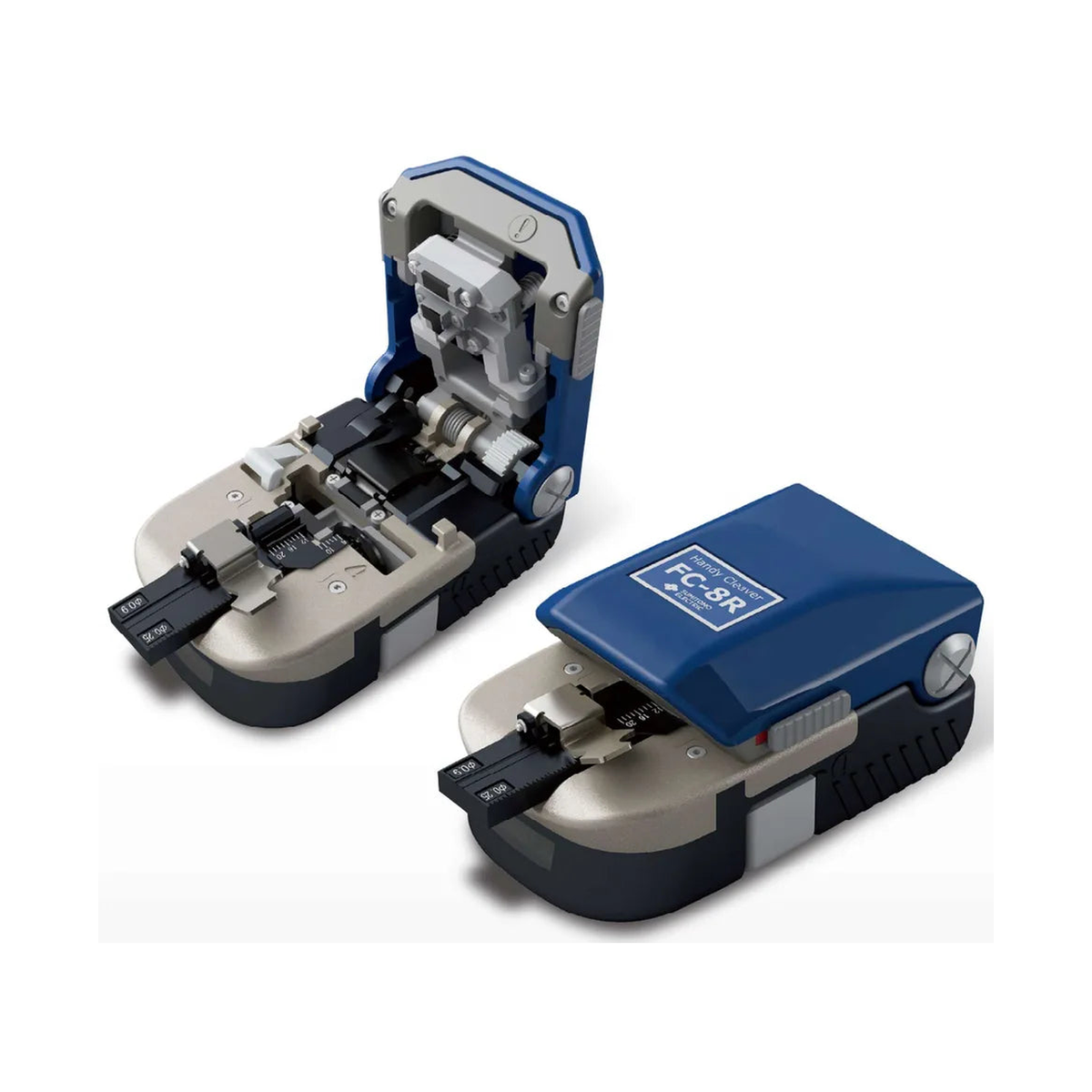

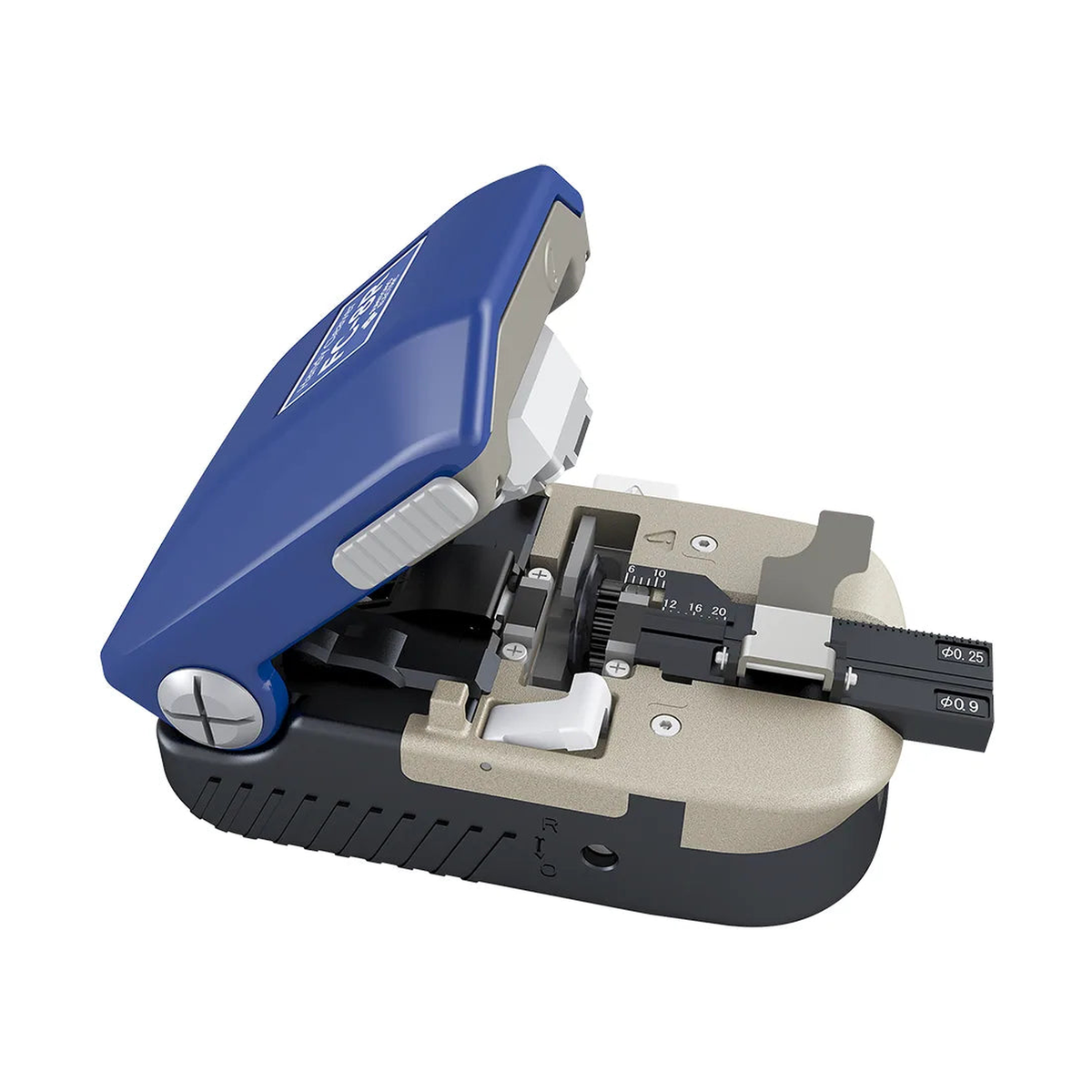

The Sumitomo TYPE-FC-8R is a high-precision ribbon fiber cleaver built for 4-, 8- and 12-fiber mass-fusion workflows. A hardened automatic blade mechanism and integrated fiber-chip collection deliver consistently low cleave angles over the life of the blade, preparing ribbon ends for downstream mass-fusion splicers in data-center and backbone builds.
Contact sales for current pricing and bulk quotation.
Specifications
- Fiber type 4 / 8 / 12-fiber ribbon (125 µm cladding)
- Cleave angle (typical) ≤ 0.5°
- Cleave length Single fiber with AP-FC7 adapter: 6–20 mm (250 µm coating), 10–20 mm (900 µm coating). Ribbon fiber: 10 mm with a suitable fiber holder and JR-6 hot jacket removal; length depends on fiber preparation method.
- Blade life (typical) 60,000 fibers total (2,500 fibers × 24 blade positions); equivalent to 15,000 / 7,500 / 5,000 cleaves for 4- / 8- / 12-fiber ribbon. Blade life is not guaranteed and varies with operating conditions.
Applications
Equipment verification
Final configuration and documentation are confirmed in the written quotation.
- Equipment condition
- To be confirmed in quote
- Calibration status
- To be confirmed in quote
- Included accessories
- To be confirmed in quote
- Lead time / availability
- Standard quotation dispatch
View all verification fields
- Serial / asset ID
- Not yet published
- Manufacture year
- Not yet published
- Firmware
- Not yet published
- Warranty
- 12-month manufacturer equipment warranty
Documents & evidence
- Published documents Not published for this product yet
- Calibration report To be confirmed in quote
- Photo / serial evidence To be confirmed in quote
Service pathways
Shipping information
Riselink Technology Limited ships from Shenzhen. Freight method, lead time and any import duties are confirmed with your order or written quotation.
Warranty
This equipment carries a 12-month manufacturer warranty. Confirm the terms that apply to your configuration in the written quotation.
