Riselink Metal Optical Fiber Identifier - Basic, VFL or OPM Version

Identify optical signal presence and direction during fiber maintenance. Choose the Basic identifier, the VFL version with a red-light visual fault locator, or the OPM version with an integrated optical power meter. All three versions have a metal housing bearing Riselink branding and are supplied in the configuration shown in the corresponding product images.

Versions and configuration

Specifications

• The following identification specifications apply to all three versions.
• Identification wavelength range: 800-1700 nm.
• Detectable identification tones: 270 Hz, 1 kHz and 2 kHz.
• Fiber adapter sizes: 0.25 mm, 0.9 mm, 2.0 mm and 3.0 mm.
• Fiber identification: single-mode and multimode.
• Housing: metal with Riselink branding.
• Power supply: 9 V battery; battery included.

In the box

• 1 Riselink optical fiber identifier in the selected version.

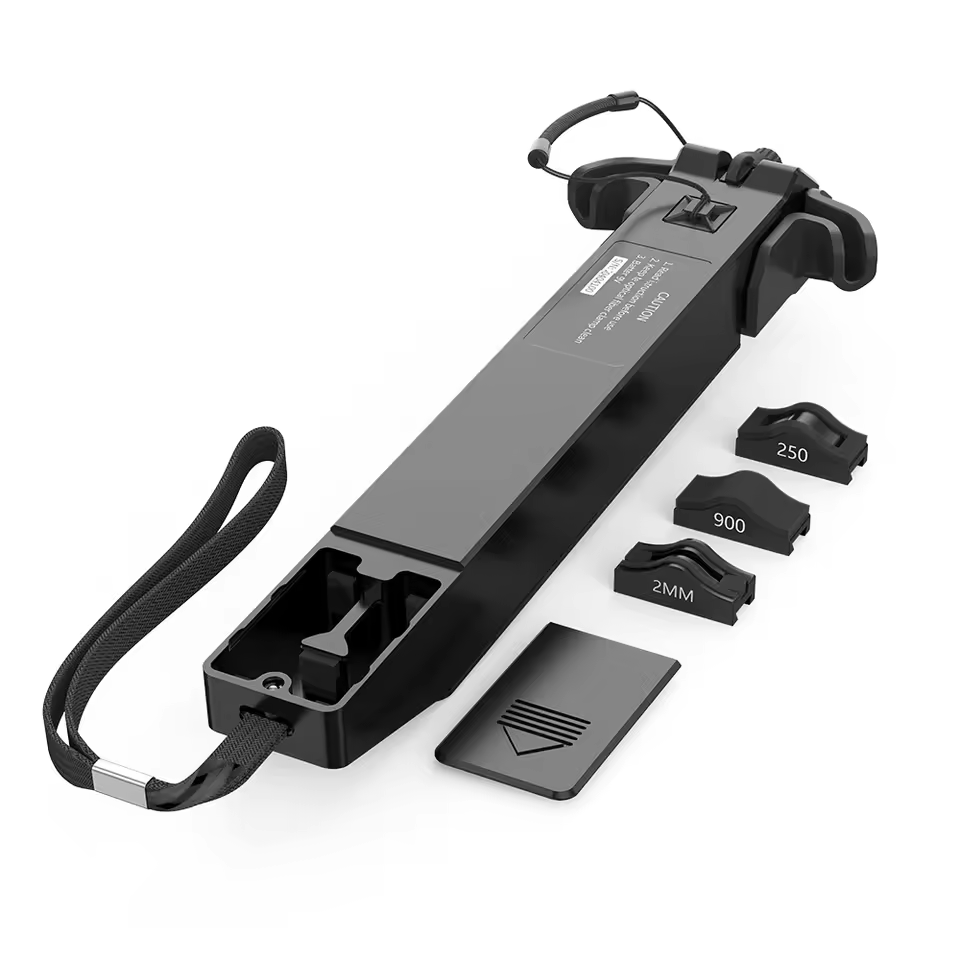

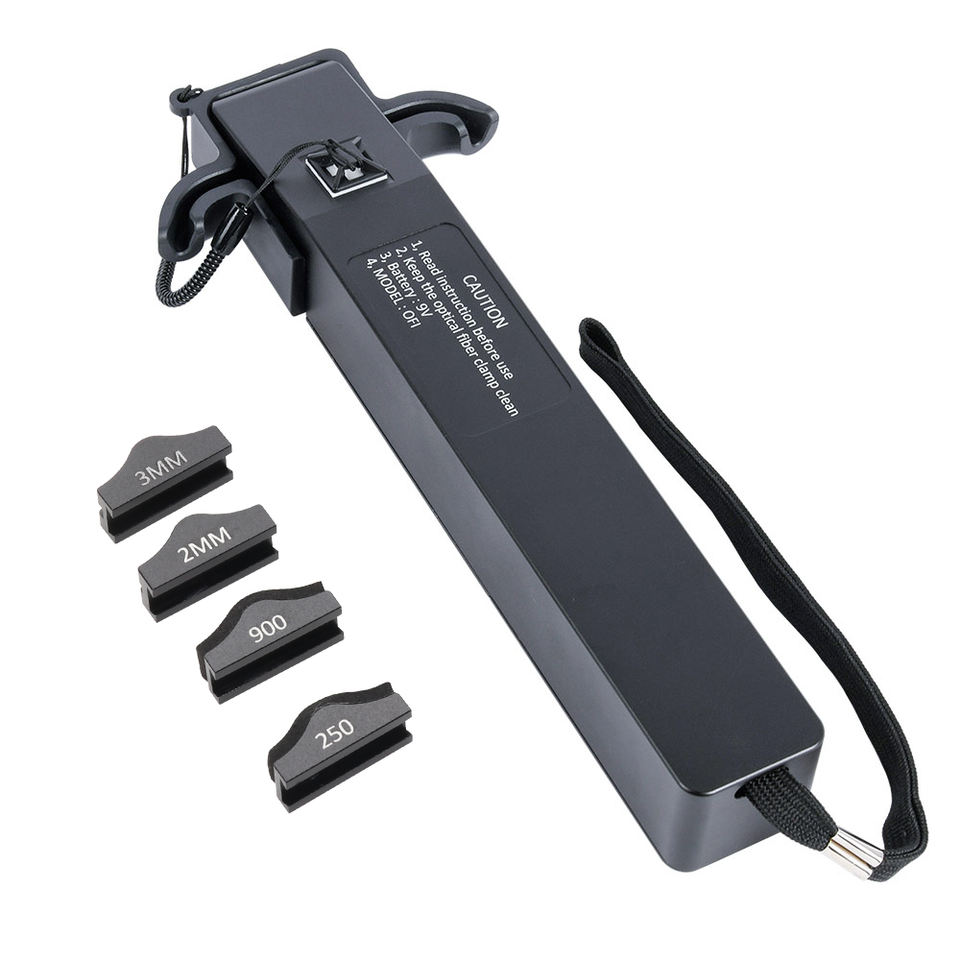

• 4 fiber adapters: 0.25 mm, 0.9 mm, 2.0 mm and 3.0 mm.
• Strap.
• 9 V battery.
• These included items apply to all three versions.

Suitability and use limitations

• Choose the adapter that matches the fiber being checked and follow the operating instructions.
• The Basic version does not add the separate VFL or OPM function. Select the required version before checkout.

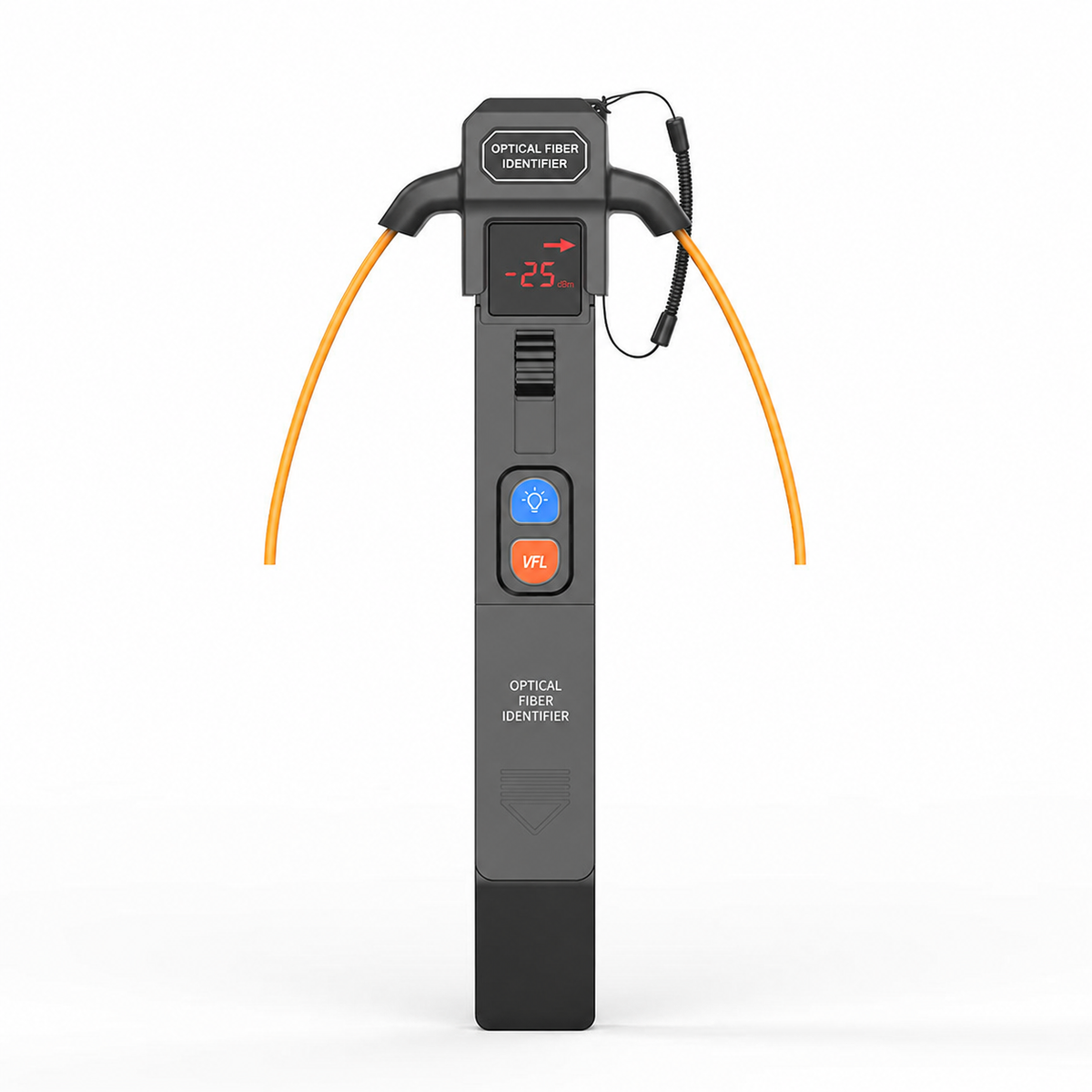

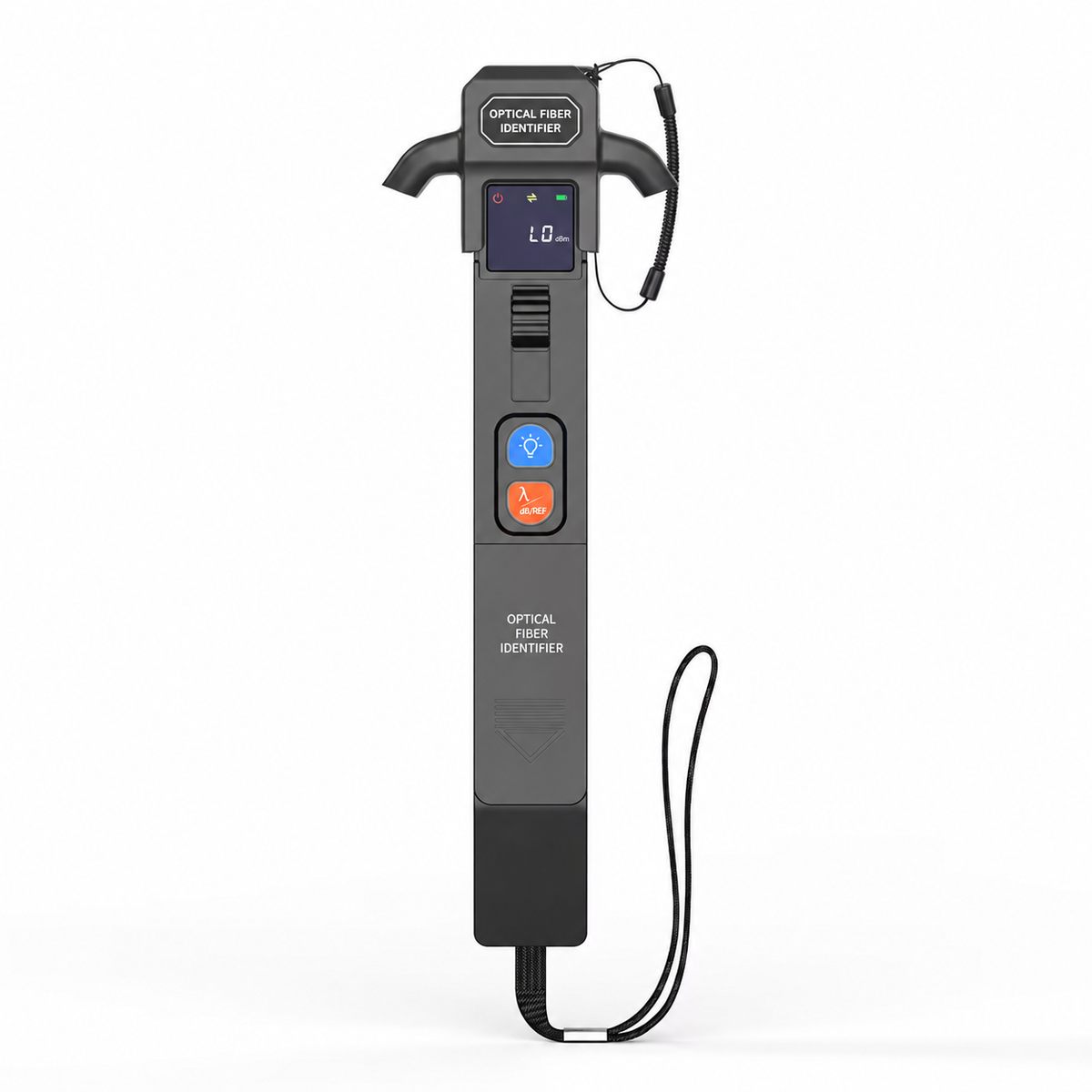

• Use the VFL function only on the VFL version; use the separate optical power meter only on the OPM version.
• Identification and direction indication do not replace an OTDR trace or a full link-loss acceptance test.

Shipping

Free shipping to the United States and Canada. Ships from Shenzhen, China. All three versions are handed to the carrier within 3 business days after payment. Orders ship via DHL, FedEx, BEST (百世), or Yanwen.
