Mini OTDR vs. Modular OTDR: Which Fiber Tester Fits Your Network Tier?

By RISLINK Optical Engineering Team

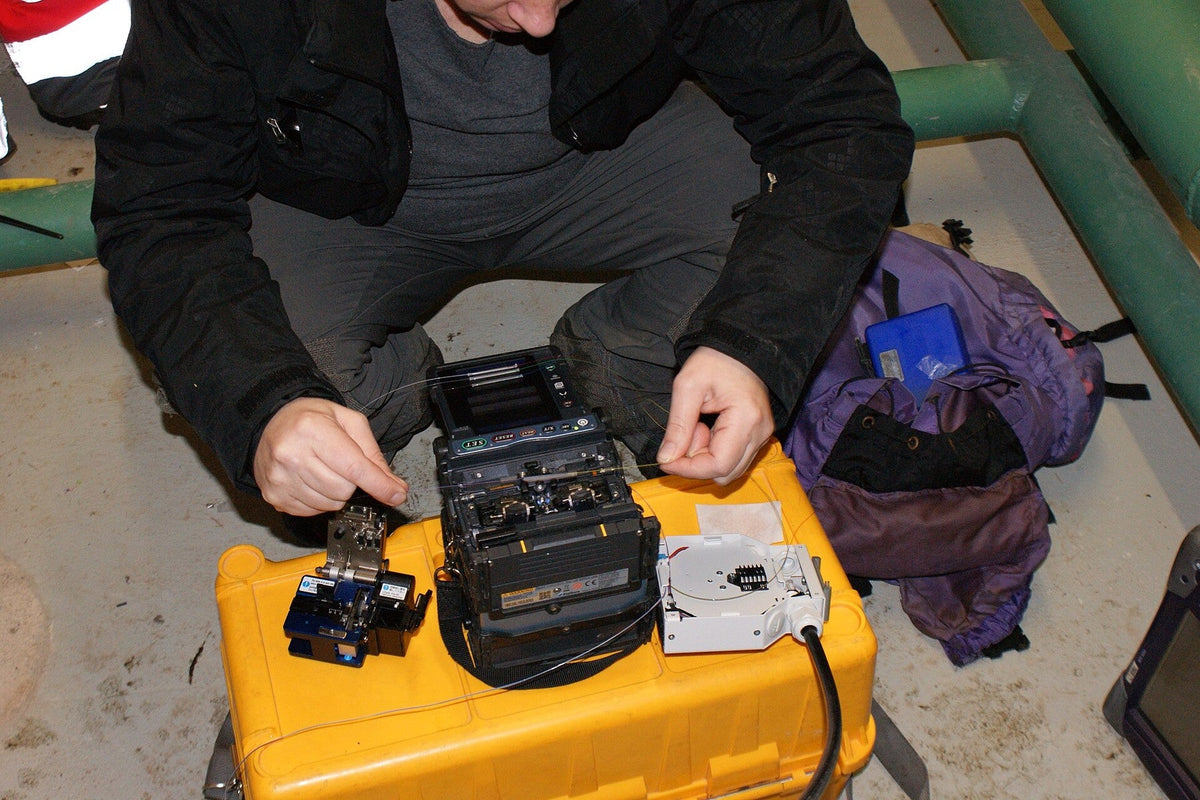

Technician testing and splicing fiber in a plant room with a handheld optical tester
Field Equipment Guide ⏱️ 7 min read • By RISLINK Optical Engineering Team
Figure 1: Handheld dual-wavelength Mini OTDR running automated Event Map acquisition on singlemode SC/APC drops.
Figure 1: Handheld dual-wavelength Mini OTDR running automated Event Map acquisition on singlemode SC/APC drops.
📋

Executive Key Takeaways

  • FTTH Drop Verification: A compact 24 dB – 28 dB Mini OTDR with sub-1m Event Dead Zone provides 100% of the diagnostics needed for last-mile customer drops at a fraction of the CapEx.
  • Splitter Penetration: If your network architecture cascades 1:32 or 1:64 optical splitters, you require high-dynamic-range modules (≥ 35 dB) and narrow short-pulse acquisition.
  • Skill Gap Reduction: Automated Event Map (iOLM) software eliminates trace misinterpretation, allowing Tier-1 field technicians to clear tickets without senior escalation.

Optical Time-Domain Reflectometers (OTDRs) are the backbone of optical infrastructure deployment, certification, and maintenance. However, as fiber architectures shift toward high-density FTTH/PON and 400G/800G data center interconnects, network engineers face a critical purchasing dilemma: compact, cost-effective Mini OTDRs versus modular, high-dynamic-range benchtop platforms.

Selecting the wrong instrument either inflates CapEx unnecessarily or leaves field technicians blind to macrobends and micro-faults past high-ratio optical splitters. Here is an engineering-driven breakdown to help you make an informed investment.

1 Core Specification Matrix: Handheld Mini vs. Modular Platforms

Parameter Handheld Mini OTDR (FTTH Tier) Modular / Enterprise OTDR
Typical Dynamic Range 22 dB – 32 dB 38 dB – 50+ dB
Wavelength Configurations Dual-wavelength (1310/1550 nm) Multi (1310/1490/1550/1625/1650 nm)
Event Dead Zone (EDZ) 0.8 m – 1.5 m 0.5 m – 0.8 m
Attenuation Dead Zone (ADZ) 3.5 m – 6 m 2 m – 3.5 m
PON Splitter Penetration Up to 1:16 or 1:32 (selective) Up to 1:64 or 1:128
Typical Target Price $250 – $1,200 $4,500 – $18,000+

🎯 Final Selection Summary

Choose a Mini OTDR if:
You are deploying FTTx drops, conducting MDU cabling, verifying campus fiber plants (<10 km), or equipping tier-1 field installation contractors with cost-effective toolkits.
Choose a Modular OTDR if:
You are certifying long-haul DWDM spans, running in-service 1625/1650 nm filtered live-fiber tests, or testing cascaded optical splitters in multi-gigabit commercial PON rings.
