IEC 61300-3-35 Compliance: Why 80% of Optical Failures Stem from End-Face Contamination

By RISLINK Optical Engineering Team

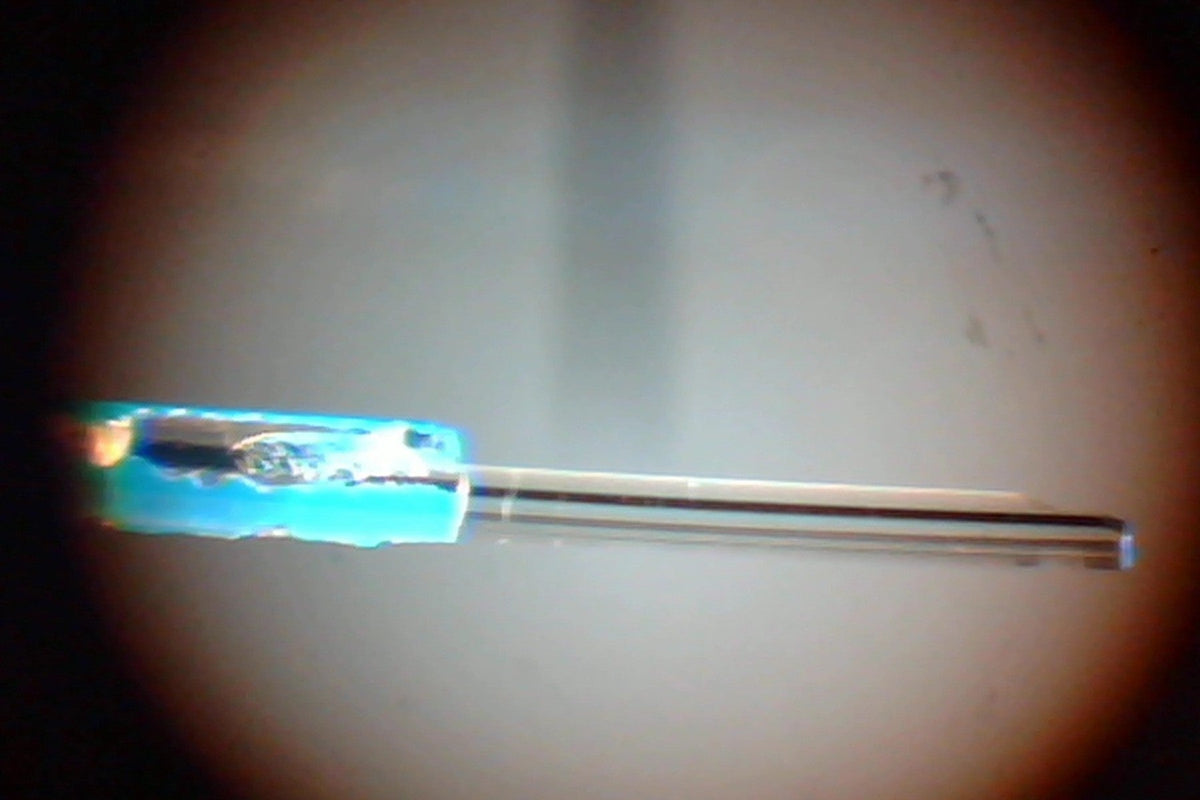

Microscope view of an optical fiber and ferrule during end-face inspection
Hygiene & Standards ⏱️ 6 min read • By RISLINK Optical Engineering Team
Figure 1: Digital fiber inspection probe analyzing ferrule zones A, B, and C with automated IEC 61300-3-35 Pass/Fail grading.
Figure 1: Digital fiber inspection probe analyzing ferrule zones A, B, and C with automated IEC 61300-3-35 Pass/Fail grading.
📋

Executive Key Takeaways

  • Root Cause of Outages: Over 80% of optical network failures and damaged transceiver ports originate from contaminated connector end-faces.
  • Zero Tolerance in Core (Zone A): The IEC 61300-3-35 standard tolerates zero scratches or loose particles in the 25 µm core zone.
  • Automated Digital Probes: Digital probes remove human subjectivity and protect technicians from invisible laser radiation risks.

Industry research conducted by leading optical laboratories points to a single undeniable truth: over 80% of network failures and optical transceiver replacements are caused by contaminated or damaged connector end-faces. A single 1-micrometer dust particle trapped in a singlemode fiber core (9 µm diameter) can generate catastrophic insertion loss and permanently pit mating ferrules.

To eradicate human subjectivity in visual inspection, the International Electrotechnical Commission developed the IEC 61300-3-35 standard. Here is how to implement automated end-face qualification into your daily workflow.

1 The Geometry of a Ferrule: Understanding the 4 Inspection Zones

🔴 Zone A: Core (0–25 µm)
Zero tolerance. No scratches or debris allowed.
🟡 Zone B: Cladding (25–115 µm)
Minor scratches permitted; no large debris.
🟢 Zone C & D: Contact (115–250 µm)
Must be free of contamination to ensure physical contact.

2 The Cyclical 'Inspect Before You Connect' Workflow

1
Inspect: Place digital probe into bulkhead or patch cord ferrule.
2
Dry Clean First: Use a click-action cleaning pen or lint-free cassette reel.
3
Wet-to-Dry for Oils: For oils or stubborn residue, apply optical solvent to a lint-free wipe, wipe across from wet to dry, and re-inspect before mating.

🎯 Inspection Policy Rule

Field Best Practice:
Always mandate digital inspection probes with automated Pass/Fail reporting for all contractor sign-offs.
Never Do:
Never look directly into live optical connectors using optical eyepieces, and never mate patch cords straight out of packaging without inspecting.
