A core alignment fusion splicer is usually the stronger choice when crews need precise alignment across demanding single-mode, mixed-fiber, or high-consequence work. A cladding alignment splicer can be a practical, productive choice for repeatable work on compatible fiber where preparation is controlled. Neither alignment method can compensate for dirty fiber, a poor cleave, the wrong splice program, worn electrodes, or inadequate maintenance.
The short answer
Choose the alignment method by application risk and process control, not by a simple “professional versus budget” label.
| Work profile | Starting point |
|---|---|
| High-count OSP work, mixed fiber, restoration, or loss-sensitive links | Evaluate core alignment first |
| Repetitive FTTH drop work on known, compatible fiber | Evaluate modern cladding alignment and core alignment side by side |
| Ribbon fiber | Use a mass fusion splicer designed for the ribbon count and pitch |
| Specialty or dissimilar fiber | Require manufacturer confirmation, appropriate holders/programs, and technical review |
The final decision should include fiber compatibility, cleaver integration, splice protection, battery and environmental performance, service support, and traceability—not only the alignment label.
How fusion splicer alignment works
Fusion splicing joins two prepared glass fibers with a controlled electric arc. Before the arc, the splicer must position the fibers so their optical paths meet as accurately as the machine and fiber allow.
The Fiber Optic Association describes optical core or profile alignment systems as using camera images from two directions, software recognition, and movable stages to align the fiber cores. Cladding alignment systems position fibers using the outside geometry of the fiber, commonly with precision V-grooves, while modern machines may add image analysis and active fusion controls.
These are alignment strategies, not guarantees of a finished splice result. The complete process still depends on stripping, cleaning, cleaving, correct fiber placement, the selected fusion program, arc condition, and splice protection.

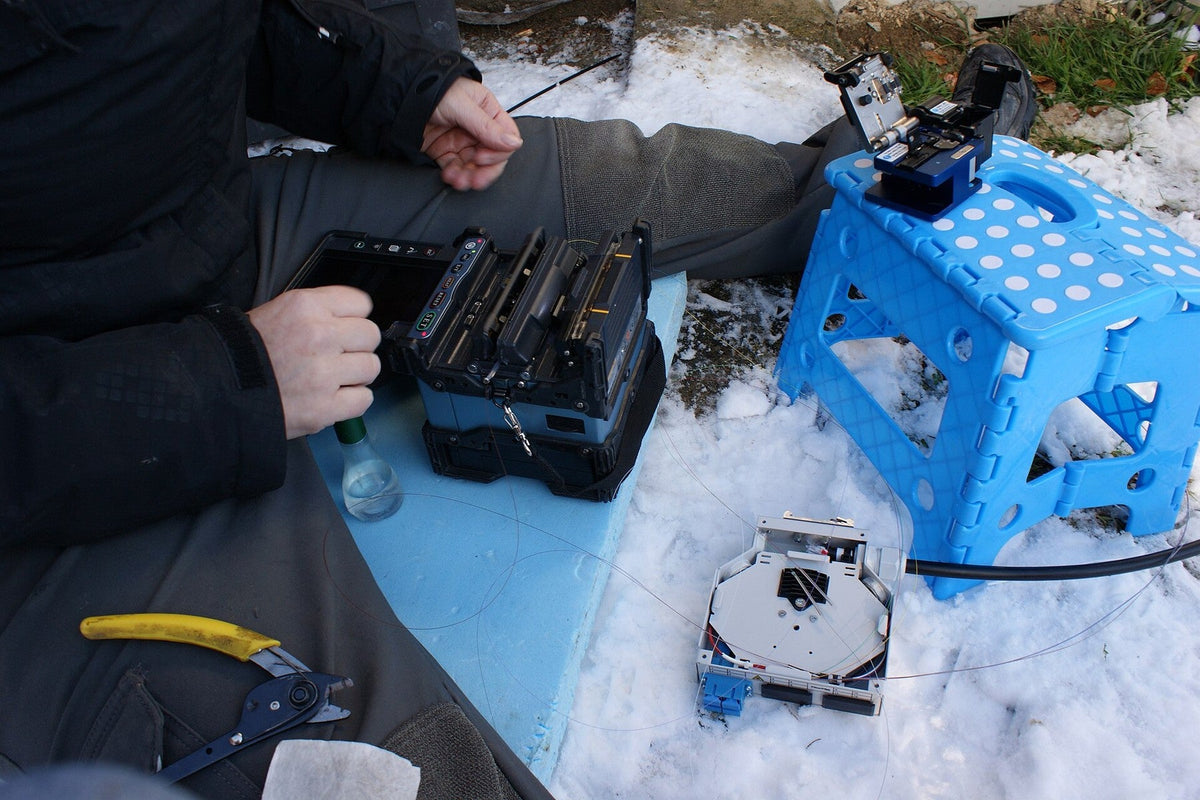

Core alignment fusion splicers
A core alignment fusion splicer observes the fibers and uses controlled movement to align the core or profile before fusion. This can help when small geometric differences between fibers matter or when the work requires a more capable alignment and analysis system.
Core alignment is often considered for:
- outside-plant construction and restoration;
- long or loss-sensitive links;
- high splice counts where repeatability matters;
- varied single-mode fiber types;
- work where crews need detailed end-face and alignment feedback;
- projects that justify a higher-capability platform and service plan.
The Fujikura 90S+ is one manufacturer example explicitly identified as a core alignment splicer. Fujikura also documents active control features that analyze cleave condition and fiber characteristics. Those capabilities are model-specific; they should not be generalized to every core alignment machine.
Cladding alignment fusion splicers
A cladding alignment fusion splicer aligns fibers using their outer geometry and the precision of the positioning system. For known fiber in a controlled preparation workflow, a modern cladding alignment unit can support efficient field production.
Cladding alignment is often evaluated for:
- standardized FTTH drop work;
- repeatable single-fiber jobs on known cable and fiber;
- teams prioritizing compact size and straightforward operation;
- deployment programs where the machine, cleaver, consumables, training, and service package have been validated together.
Do not assume that “cladding alignment” means a primitive machine. Fujikura, for example, describes its 45S as an active cladding alignment splicer with cleave analysis and fusion control. The relevant question is what the exact model does under your fiber and field conditions.
Why cleaving and cleaning matter as much as alignment
The quality of the fiber end face is central to fusion splicing. The FOA states that fusion splicing requires a precision cleaver and that splice quality depends on cleave quality. Its recommended preparation sequence is straightforward: strip, clean, and cleave.
Common process risks include:
- damaged or contaminated bare fiber;
- an angled, chipped, or irregular cleave;
- incorrect cleave length for the holder and splicer;
- debris in V-grooves, clamps, cameras, or electrodes;
- an unsuitable fusion program for the fiber pair;
- worn cleaver blades or electrodes;
- moving the splice before it is protected.
A more advanced alignment system may identify some bad conditions, but it does not remove the need for disciplined preparation and maintenance.
Core vs. cladding alignment: a practical comparison
| Evaluation area | Core alignment | Cladding alignment |
|---|---|---|
| Alignment reference | Observed core/profile with controlled stages | Outer fiber geometry/V-groove positioning, with model-specific active controls possible |
| Best evaluation context | Varied or demanding single-mode work, high-consequence links | Repeatable work on known compatible fiber |
| Sensitivity to preparation | High—cleaning and cleaving remain essential | High—V-groove condition and fiber geometry make process control especially important |
| Operator feedback | Often more detailed, depending on model | Varies significantly by model |
| Purchase decision | Justify capability through application and support needs | Validate repeatability, compatibility, and total workflow |
| Result verification | Splicer loss is an estimate; finished-link testing is still required | Same |
The “estimated splice loss” shown by a splicer is not the same as a completed link acceptance measurement. The FOA notes that individual splice loss verification with an OTDR requires appropriate technique and that bidirectional testing may be needed for accurate interpretation. End-to-end loss testing serves a different purpose.
Seven questions to ask before buying a fusion splicer
- Which fiber standards, coating diameters, and cable constructions will be used?
- Is the work single fiber, ribbon fiber, splice-on connector, or a mix?
- Are the fibers known and repeatable, or will crews encounter mixed and legacy plant?
- Which holders, cleaver, stripper, sleeves, and heater workflow are required?
- What field conditions, battery runtime, drop protection, and lighting conditions must the unit handle?
- How are electrodes, cleaver blades, calibration, firmware, repairs, and training supported?
- What records must be retained for each job, and how will completed links be tested?
Look beyond the splicer purchase price
For B2B procurement, the relevant cost is the operating system around the splicer. Include:
- cleaver and blade management;
- electrodes and cleaning supplies;
- holders and accessories for the actual fiber;
- protection sleeves and heater throughput;
- batteries, chargers, and transport cases;
- operator training and standard work instructions;
- calibration, maintenance, repair turnaround, and loaner policy;
- rework, callback, and documentation effort.
A lower purchase price does not create savings if the selected workflow cannot be maintained consistently. A higher-capability machine is also difficult to justify if the application never uses its added functions.
Fusion splicer examples in the RISLINK catalog
The RISLINK fusion splicer collection includes core-alignment and other field-splicing platforms. The catalog currently includes the Fujikura 90S+ and Sumitomo TYPE-82C among other models.
Model names alone do not define the supplied kit. Fiber holders, cleaver, heater accessories, batteries, software, calibration evidence, condition, and warranty must be confirmed for the exact quotation. To compare models, send RISLINK your fiber type, cable construction, splice volume, field conditions, and required records.
Frequently asked questions
Is core alignment always lower loss than cladding alignment?
Not as a universal rule. Alignment capability matters, but actual results also depend on fiber geometry and compatibility, preparation, cleave quality, fusion settings, equipment condition, and test method. Evaluate the complete workflow with representative fiber.
Is cladding alignment suitable for FTTH?
It can be suitable for repeatable FTTH work when the exact model supports the fiber, cable, holders, and production requirements. Validate it with the intended materials and acceptance method before standardizing a fleet.
Can the splicer's loss estimate replace OTDR testing?
No. The displayed value is an estimate from the splicer's alignment and image analysis. Project acceptance should follow the specified end-to-end loss and event-characterization procedures.
Do I need a special splicer for ribbon fiber?
Yes. Ribbon work requires a mass fusion splicer and preparation tools designed for the relevant ribbon count, pitch, holders, stripping, and cleaving process.
What is the most important companion tool?
A compatible precision cleaver is essential. Stripping, cleaning, fiber handling, splice protection, and inspection supplies are also part of the minimum working system.
